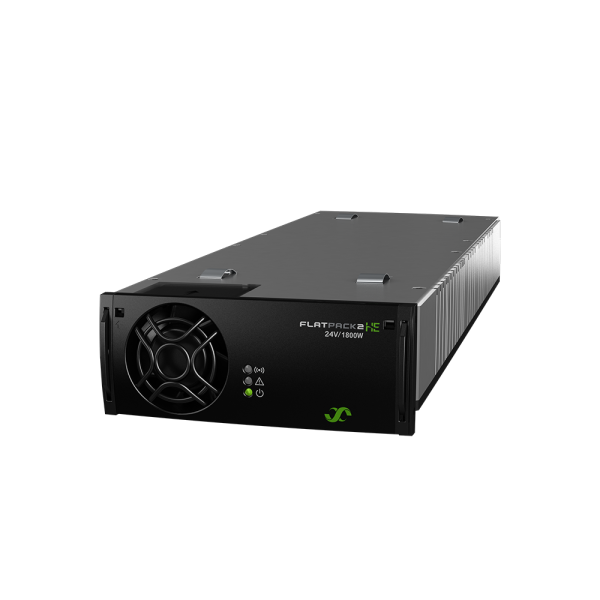

Flatpack2 24V/1800W HE
The combination of innovative design, efficiency and reliability makes the Flatpack2 HE stand out.
Compared to older technologies with even poorer efficiency an investment in a Flatpack2 HE system is repaid in a few years by the reduced operating cost.
Compared to older technologies with even poorer efficiency an investment in a Flatpack2 HE system is repaid in a few years by the reduced operating cost.
Flatpack2 24V/1800W HE
The combination of innovative design, efficiency and reliability makes the Flatpack2 HE stand out.
Compared to older technologies with even poorer efficiency an investment in a Flatpack2 HE system is repaid in a few years by the reduced operating cost.
Compared to older technologies with even poorer efficiency an investment in a Flatpack2 HE system is repaid in a few years by the reduced operating cost.
closeOverview
Reliable high efficiency rectifier for industrial applications
The Flatpack2 modular concept has a lot of benefits compared to traditional solutions in the industry. It has high efficiency; less power consumption and heat dissipation. The overall Size and footprint of cabinet is 50% of Thyristor Controlled Size. Modular Hot Plug-in Construction allows redundancy, n+1, n+2 configurations.
It's easy to do repairing with MTTR< 5 minutes.Very high MTBF > 350000 hours, wide input AC Voltage and frequency range.Possibility to build combined systems with rectifiers, DC/DC converters and inverters controlled by one controller.
It's easy to do repairing with MTTR< 5 minutes.Very high MTBF > 350000 hours, wide input AC Voltage and frequency range.Possibility to build combined systems with rectifiers, DC/DC converters and inverters controlled by one controller.
Key features
- Digital controllers
- Heat management
- OR-ing protection on output unique connection
- Global approvals
Technical Data
Input
Voltage AC (operating range)
85 - 300 VAC
Voltage DC (operating range)
85 - 300 VDC
DC Output
Max Power
1800 W
Voltage (adjustable range)
21,7 - 28,8 VDC
Current (maximum)
75 ADC
Max voltage
28,8 VDC
Other
Cooling
Single fan
Efficiency
95 %
Operating temperature
-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)
109 x 41,5 x 327 mm
Dimensions WxHxD (inch)
4,29 x 1,63 x 12,78 "
Weight
1,95 kg
Design Standards
Ingress Protection (IP)
20
Certifications
Marine
DNV 2.4 Valid for part no. 241115.205M
Downloads (1)
-
Datasheet Flatpack2 24/1800 HE
- Version 00
- 512 kB
- Document number: EDM0000776714
Reliable high efficiency rectifier for industrial applications
The Flatpack2 modular concept has a lot of benefits compared to traditional solutions in the industry. It has high efficiency; less power consumption and heat dissipation. The overall Size and footprint of cabinet is 50% of Thyristor Controlled Size. Modular Hot Plug-in Construction allows redundancy, n+1, n+2 configurations.
It's easy to do repairing with MTTR< 5 minutes.Very high MTBF > 350000 hours, wide input AC Voltage and frequency range.Possibility to build combined systems with rectifiers, DC/DC converters and inverters controlled by one controller.
It's easy to do repairing with MTTR< 5 minutes.Very high MTBF > 350000 hours, wide input AC Voltage and frequency range.Possibility to build combined systems with rectifiers, DC/DC converters and inverters controlled by one controller.
Key features
- Digital controllers
- Heat management
- OR-ing protection on output unique connection
- Global approvals
Request a quote
