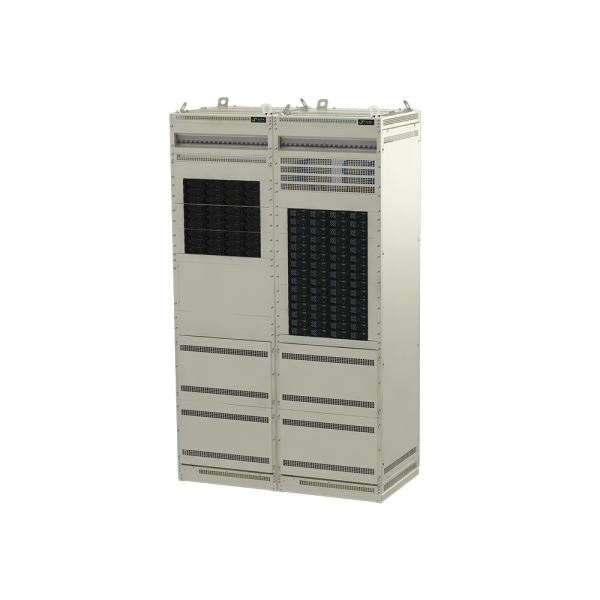

Rectiverter Scalable System 120 kW
The scalable Rectiverter indoor system provides backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for DC loads and battery charging.
Overview
Rectiverter Scalable System 120 kW
The system has a maximum load capacity of 108 kW, which is dynamically variable to provide AC outputs up to 90 kVA / 72kW and also feed DC loads up to 72 kW with built in AC & DC distribution.
When used in combination with the optional B-input (dual AC input) which eliminates the need for a traditional ATS (Automatic Transfer Switch), the Rectiverter indoor system represents the ultimate in flexibility and scalability.
When used in combination with the optional B-input (dual AC input) which eliminates the need for a traditional ATS (Automatic Transfer Switch), the Rectiverter indoor system represents the ultimate in flexibility and scalability.
Key features
- 400 VAC 3 phase (Y) input
- 400 VAC 3 phase (Y) output
- 48 VDC input/output
- Max 90 kVA / 72 kW AC output
- Max 72 kW DC output
- AC Distribution
- DC distribution option
- A+B option (dual AC input)
- LVBD option
- Up to 4 battery strings
- Built in transfer technology
- 150% overload capability, 15S
- 600% quick trip current 20 ms
- Hot pluggable
- Smartpack2 controller
- Operates in paralell with Flatpack2 rectifiers
- Global compliance
- Patented HE technology
Technical Data
Input
Current (maximum)
1920 ADC
Voltage AC (operating range)
320 - 475 VAC
Voltage DC (operating range)
40 - 58 VDC
Max input AC Voltage
475 VAC
Max input DC Voltage
58 VDC
Mains configuration
230/400VAC 3 phase (Y)
AC Output
Voltage (adjustable)
346 - 415 VAC
Max Output AC Voltage
415 VAC
Max power (kVA/kW)
90 / 72
DC Output
Voltage (adjustable range)
43 - 58 VDC
Current (maximum)
1500 ADC
Max voltage
58 VDC
Max power
72 kW
Battery Distribution
Breaker positions up to
4
Breaker rating up to
1600 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
30
Breaker rating up to
120 A
LVLD
No
AC Load Distribution
Number of breakers
30
Breaker rating, up to
63 A
Other
Cooling
Single fan
Operating temperature
-40 - 55 °C
Storing temperature
-40 - 85 °C
Dimensions
Dimensions WxHxD (mm)
1200 x 2000 x 600 mm
Dimensions WxHxD (inch)
47,4 x 78,8 x 23,7 "
Mounting dimensions
19" / 44U / 600 Width (Inch) / Height (U) / Depth (mm)
Weight
500 kg
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Rectiverter Scalable System 48VDC 120 kW
- Version 2
- 693 kB
- Document number: CTEJ6043.48.DS3
